6800Tons DSV launching for Strategic Marine (Vietnam)

Evergreen-Maritime successfully launched a 6800 tonnes DSV in Vietnam

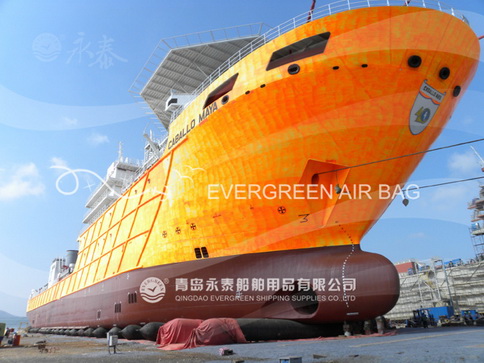

On April 6 Strategic Marine (Vietnam) successfully launched a 6800 tonnes DSV (Deep Submergence Vehicle) with 44 pieces Evergreen ship launching airbags in Vung Tau City Vietnam. The DSV named “Caballo Maya” has the 143 meters overall length and 22 meters moulded breadth.

Evergreen-Maritime is a professional manufacturer of marine airbags and also global contractor of airbag launching projects. Evergreen offered Strategic Marine (Vietnam) the total pack for his DSV launching which include marine airbags and on site consultant service.

Strategic Marine is an International Shipbuilding company that specialises in both aluminum and steel construction. The Australian born shipbuilder currently operates shipyards in Australia, Singapore, Vietnam and Mexico.

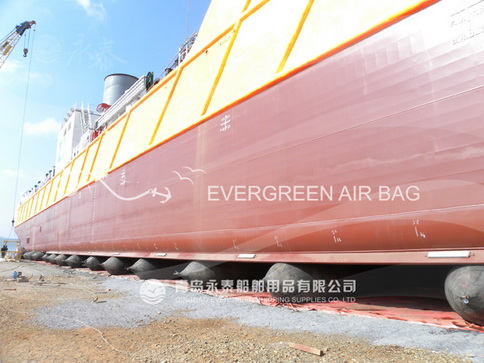

The “Caballo Maya” was built on a 1.37 degree slipway which consists of cement columns and rubbles. The extended slipway to the sea was covered by well welded steel plates and all the joints were abraded to be smooth.

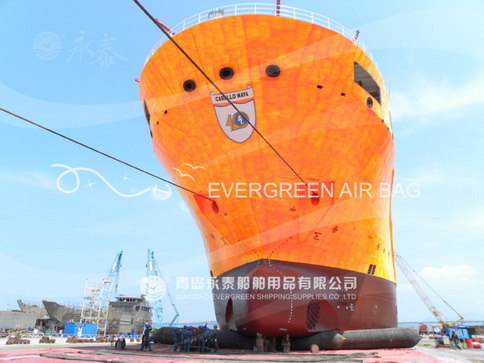

The procedure of “Caballo Maya” launching can be described as follows: first step lift up the ship with ship launching airbags and remove all wooden blocks; second step move the ship forward 35 meters; third step cut steel ropes to release the ship when the tide water reach enough high.

Two 50 tonnes winches were employed to pull the ship from unexpected sliding before we began to inflate airbags to lift up vessel from blocks. It took six hours to lift up whole ship and remove all blocks. When we tried to move ship forward in the evening of April 5 some places of slipway sinked that caused us big trouble. Ten Evergreen marine airbags under the bow were inflated to be 0.17 Mpa and twelve airbags under stern were deflated to be 0.10 Mpa thus gave the ship more slide force to move. At the midnight of April 5 the ship was positioned at the right place after 5 hours hard working.

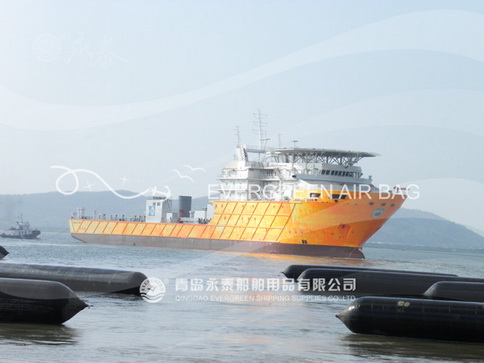

In the next day morning 800 tonnes ballast water were added to the ship’s cabins to gain the stability of launching. At 4 PM of April 6 when the water depth reached 4.5 meters, Mr.John Wray, the site manager of Strategic Marine sent out the “go” command. Two steel ropes were chopped up at the same time then the big vessel began to move with the rolling Evergreen airbags and entered into the sea smoothly. It is a real magic show that all people are affected to cheer and scream.

To complete this launching project it is a trial for Evergreen marine airbags and ship launching technology. Evergreen-Maritime focuses on the products’ quality and technology development so Evergreen-Maritime knows how.
Evergreen-Maritime will continue to do his contribution to world maritime industry.
